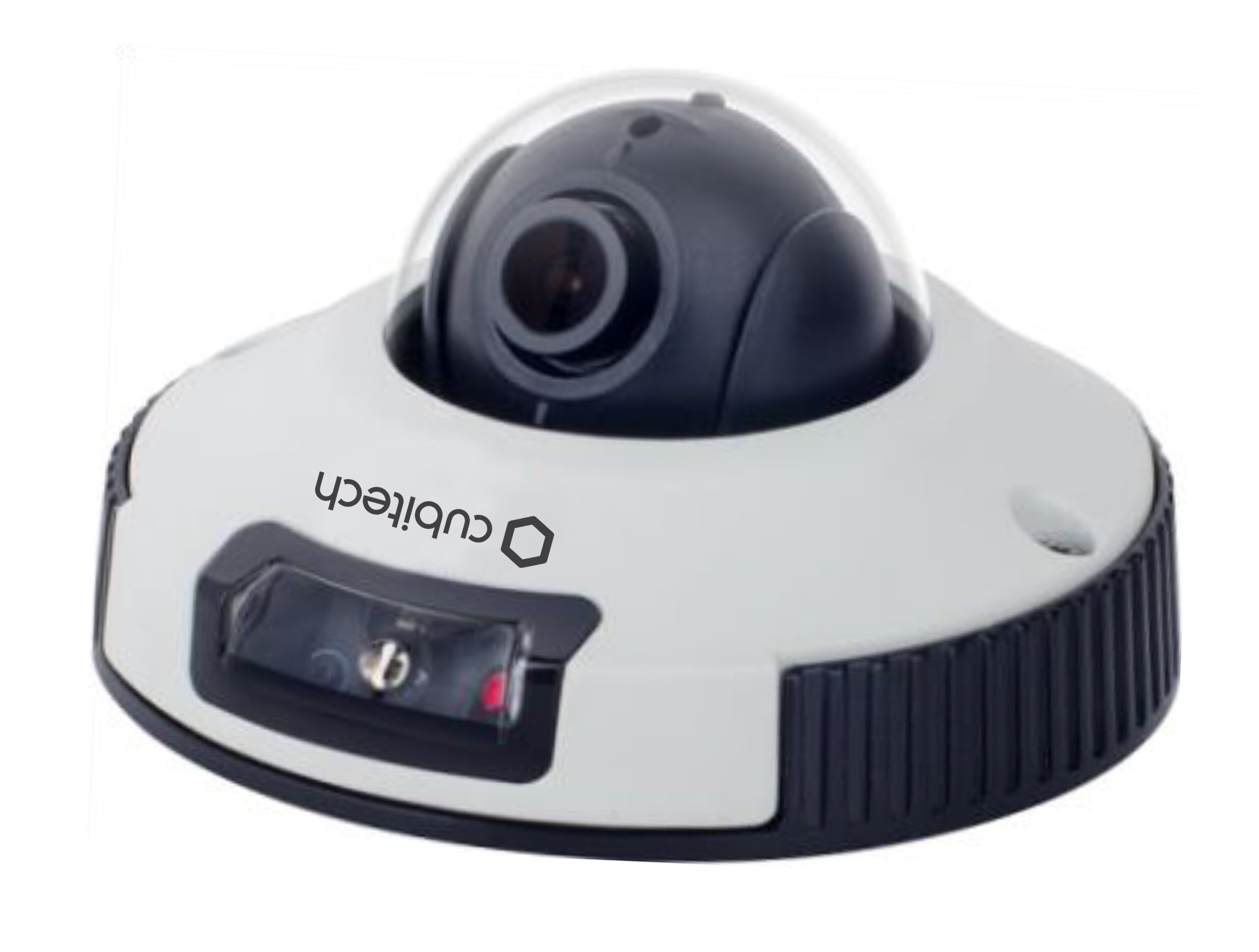

CB-DIM2028FW

1080P Vandal IR Mini Dome Camera with True WDR

Key Features

○ Mini metal design, easy installation
○ 1/2.8” Progressive Scan CMOS
○ 2.8mm fixed lens
○ H.265 encoding, 1080p@25fps
○ WDR (120db)
○ Smart IR Up to 15m
○ ROI, Defog, Corridor mode, DIS
○ 1ch Audio in/out, 1ch Alarm in/ou
○ Low bitrate, Excellent low light performance



1123041

Cubitech’s middle line has been upgraded to H.265 encoding technology, bringing high efficient video compression. With 1080p@25fps
resolution and True WDR up to 120ds they provide excellent image quality even in harshly backlit environments.
Embedded video analytics features such as line crossing perimeter, removed object left or removed, illegal parking etc provide efficient
event triggers for the most demanding security and business requirements.

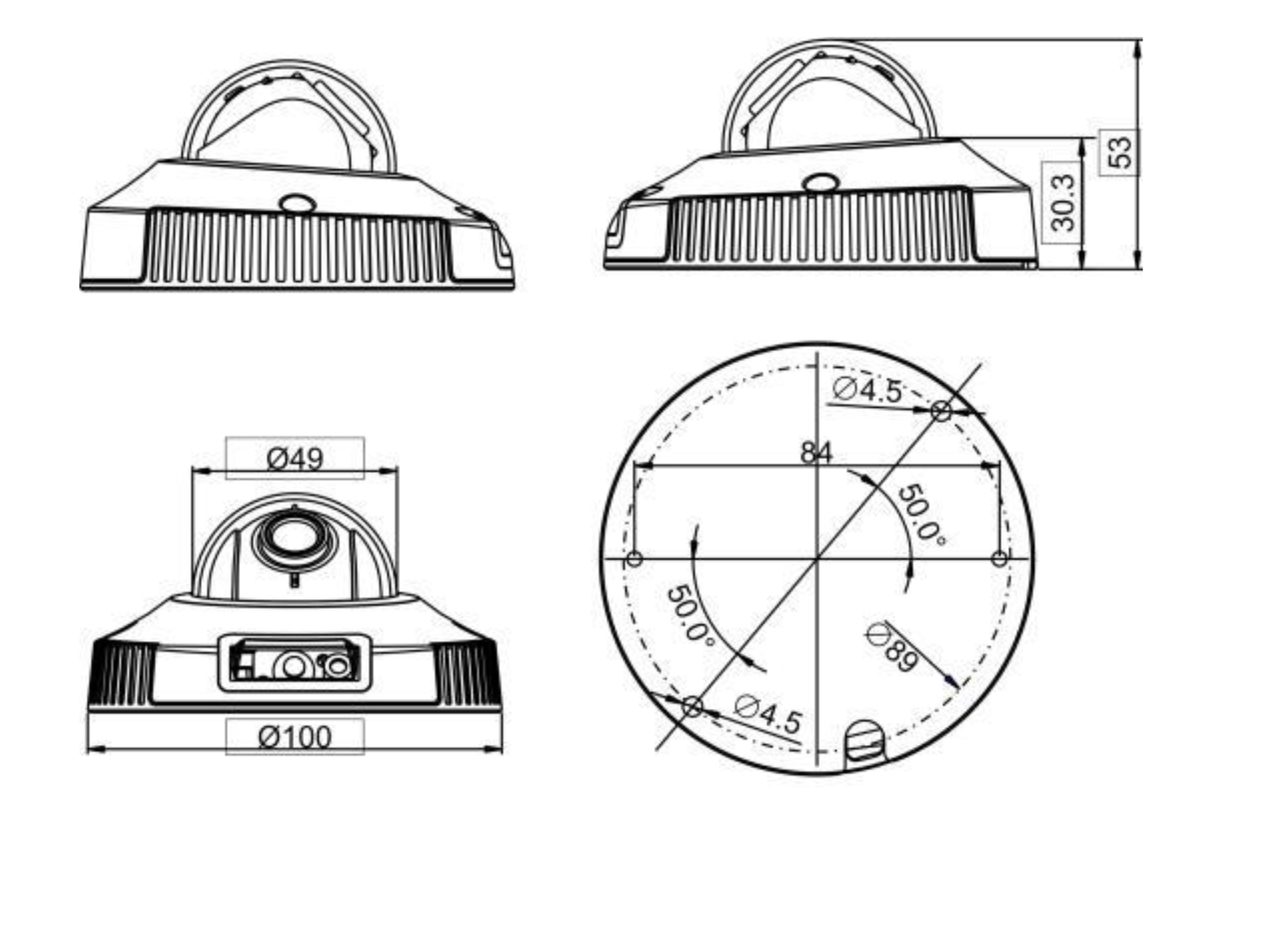

Dimensions (CB-DIM2028FW-DIM.jpg, 626 Kb) [Download]

Image - High Resolution (CB-DIM2028FW.jpg, 1,105 Kb) [Download]

Technical Datasheet (CB-DIM2028FW.pdf, 345 Kb) [Download]
