4.0MP, Vandal proof with 2.8mm Fixed lens, True WDR & BLC

Key Features
○ High quality video capturing at 4.0MP
○ True WDR for good detail in bright and dark areas
○ Easy, flexible installation on wall or ceiling
Smart IR Range 15m

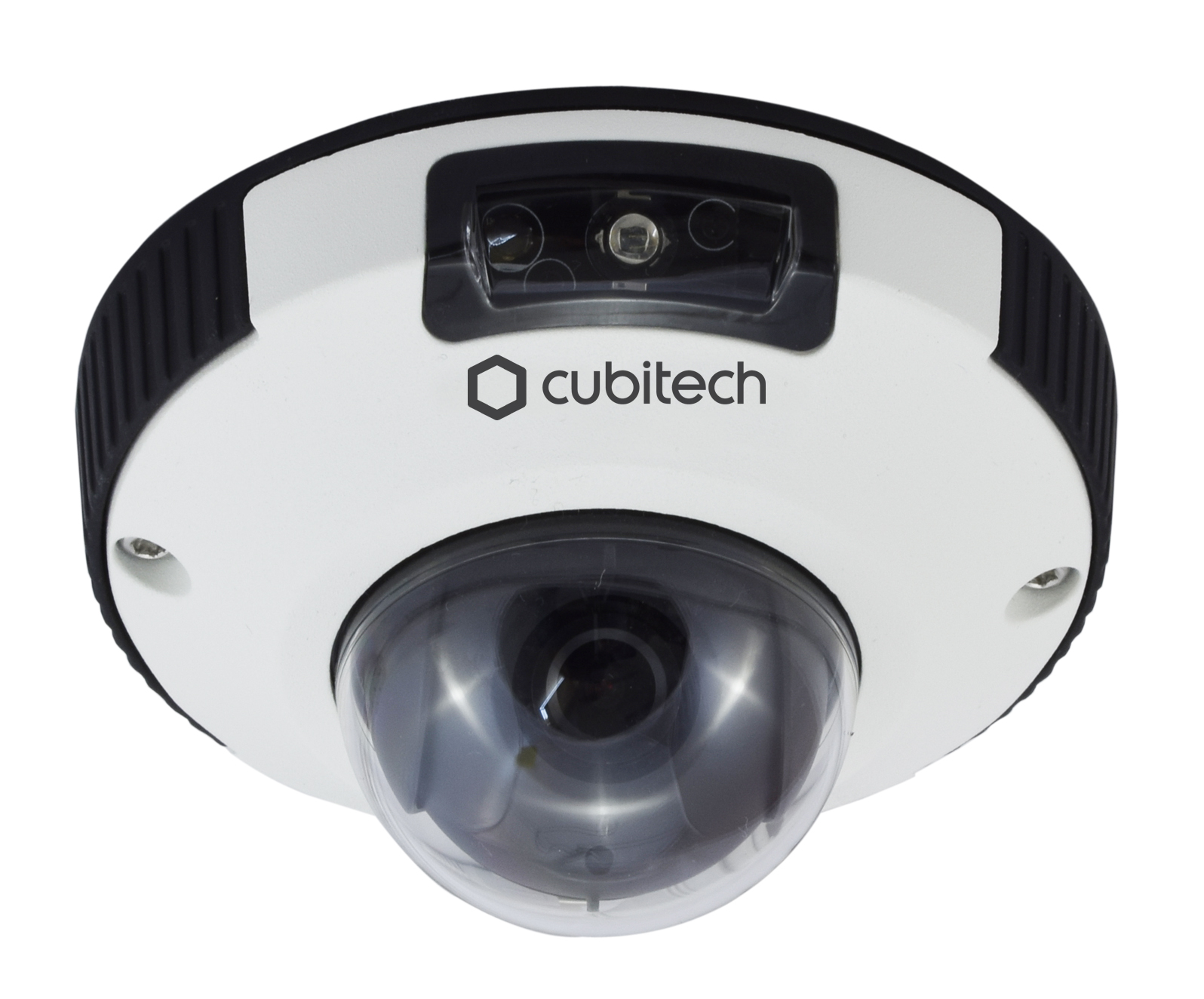

CB-DIS4028F is a discreet mini dome network camera, with 2.8mm fxed lens. It offers a brilliant video performance at 4.0MP resolution, while can provide clear image with rich details even under backlight, due to True WDR. With triple streaming, CB-DIS4028F is able to provide flexibility and adaptability to different LAN requirements and restrictions.

The camera is designed for flexible and easy installation, while at the same time, with the vandal proof metal casing, can be exposed to areas that demand vandal resistance.

Image - High Resolution (DIS4028F_HighRes3.jpg, 604 Kb) [Download]

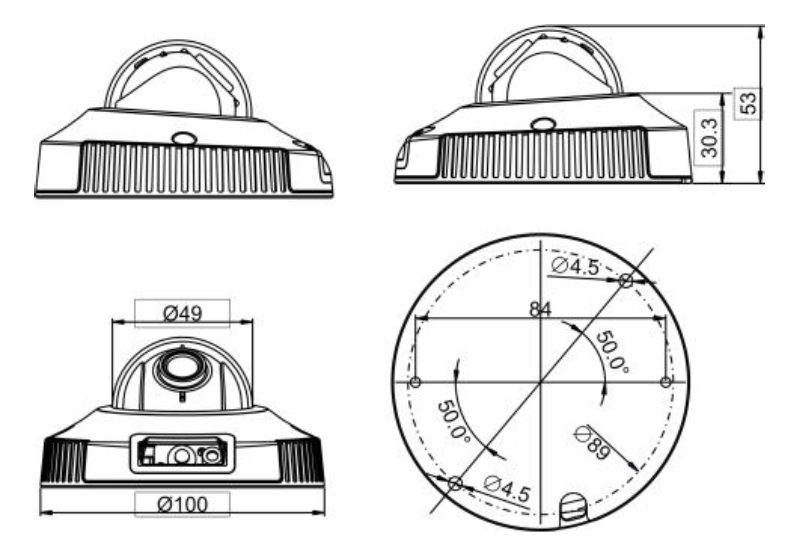

Dimensions (CB-DIS4028F.jpg, 88 Kb) [Download]

Technical Datasheet (CB-DIS4028F.pdf, 249 Kb) [Download]

CE Certificate (CE_for_Dome_and_Fisheye_IP_cameras.pdf, 291 Kb) [Download]

IP66 - IK10 Certificate (IP66-IK10_for_Dome_and_Fisheye_IP_cameras_short_version.pdf, 112 Kb) [Download]
