Matrix CB-IPMA-16

Control room solution

Key Features

○ Rackmountable industrial design
○ Can drive 16 HDMI screens
○ Support unlimited network cameras
○ Up to 8 slots for mounting decoding modules
○ Support 4K, 1080P, 720P and D1 video format
○ 2 years warranty

1701005

○ Support standard H.265, H.264, MPEG4
○ Support for network media, ONVIF, RTSP data input
○ Each card can support 2ch HDMI output, every odd output support 4K output
○ Single module support 4ch at 4K or 32ch at 1080P or 64ch at 720P decoding and display
○ Support video-splitting output, or 5x5 windows maximum on one monitor


Technical Datasheet (Matrix_.pdf, 305 Kb) [Download]

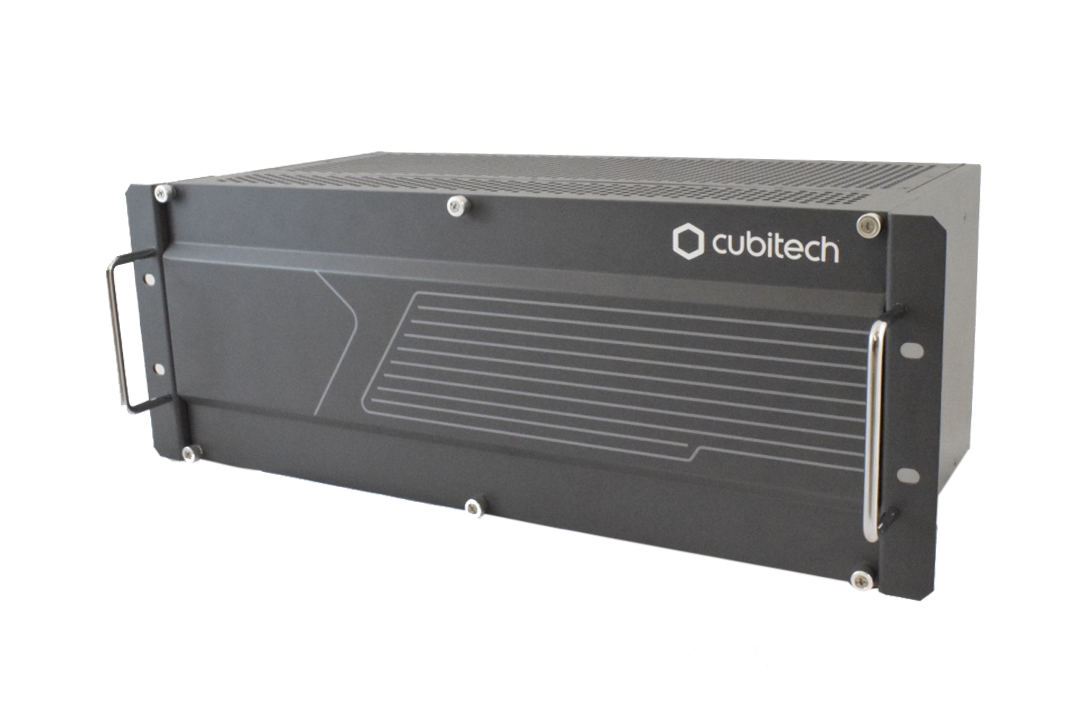

Matrix Photo (matrix_processor.png, 269 Kb) [Download]

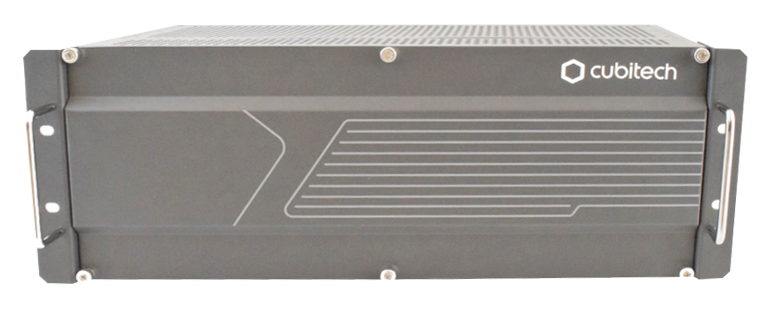

Matrix Photo (matrix.png, 426 Kb) [Download]

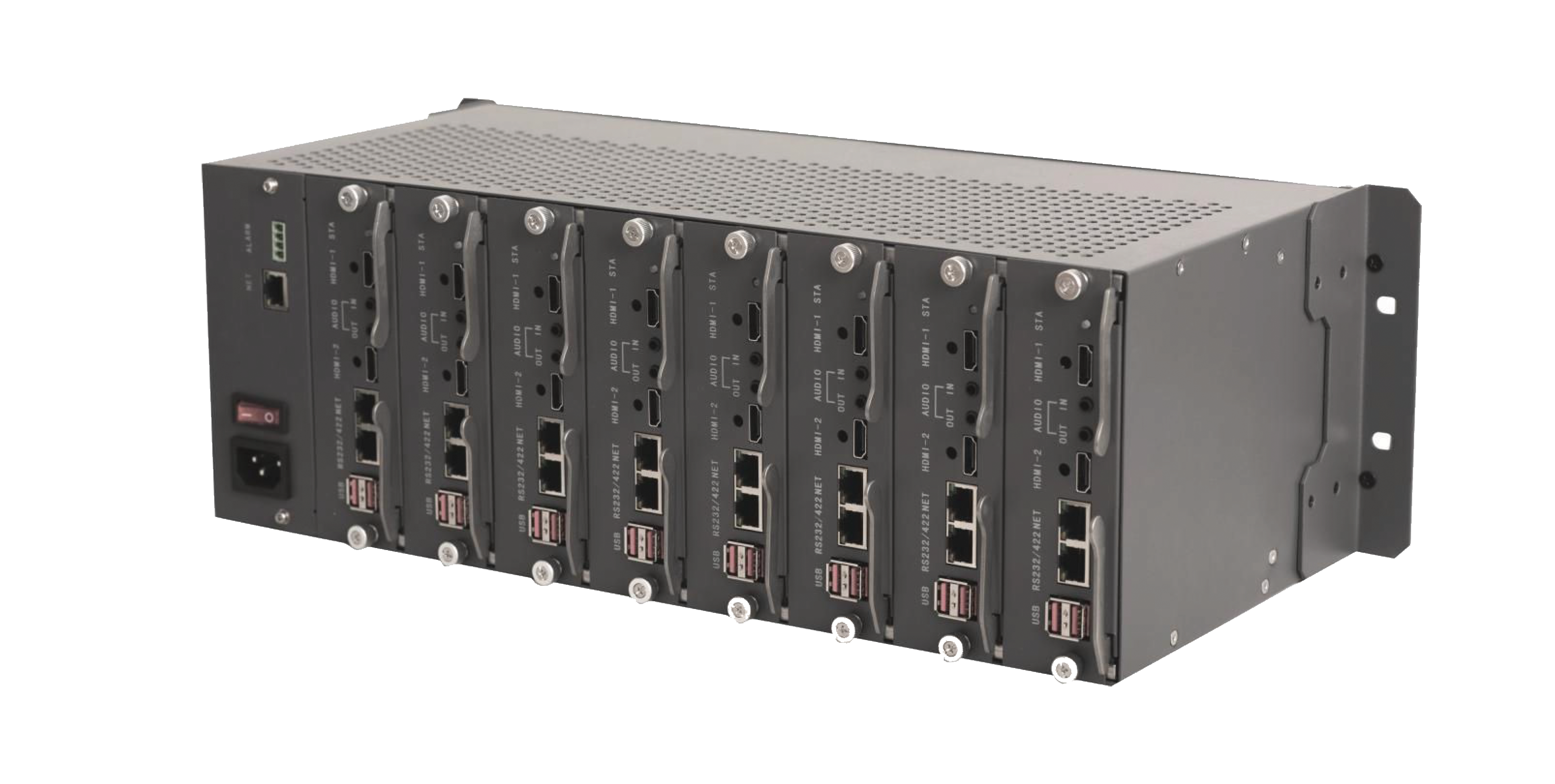

Matrix Photo (matrix_rear.png, 3,465 Kb) [Download]
